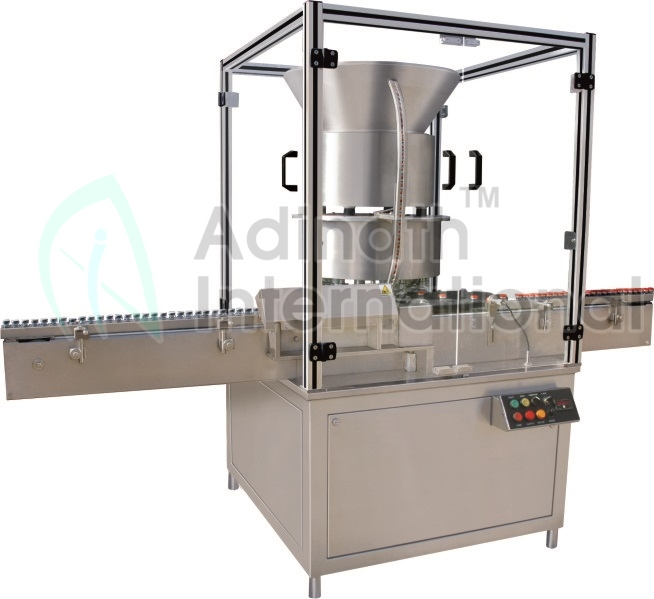

Vial Capper Machine suitable for flip-off cap / aluminium sealing of injectable glass vials. Vial Capper Device uses in the pharmaceutical, veterinary and biotech industry for performance & GMP demanding customers. Adinath offers different models of Vial Sealer Machine which includes Automatic Six Head Vial Capper Machine suitable for large scale production, Automatic Four Head Vial Capper Machine suitable for medium scale production and Automatic Single Head Vial Capper Machine suitable for medium & small scale production. All machines equipped with gear motor and variable AC frequency drive, so customer can operate machine speed as per own production requirements. Vial Cap Sealing Machine can be attached to Vial Filling Machine and Vial Labeling Machine in order to become part of complete system of Sterile Vial Filling Line..
.
Duly Stoppered vials are continuously fed from the convetor of filling machine to the flat conveyor belt of sealing machine and move further through infeed worm for correct spacing and transferred to the infeed starwheel. Aluminium caps kept in vibratory bowl automatically orient caps in right direction before entering the delivery chute. Vial during its rotation movement with infeed starwheel picks up aluminum seal from the retaining finger of delivery chute and correctly position on the vial before entering sealing turret. Vial now moves on the spring loaded sealing platform, where free spinning sealing rollers moves gradually inside to complete the sealing operation during rotational movement of sealing platform turret. Now sealed vials are transferred to exit starwheel pocket and further moves out on to the flat conveyor belt. Duly sealed vials are collected on out-feed collection tray..
| Model | ACS-60 | ACS-120 | ACS-200 | |
|---|---|---|---|---|
| Capping Heads | One | Four | Eight | |
| Production Rate | Up to 60 Vials/Minute | Up to 100 Vials/Minute | Up to 200 Vials/Minute | |
| Input Specification | ||||
| Vial Diameter | 15mm to 70mm | 15mm to 70mm | 15mm to 70mm | |
| Vial Height | 25mm to 140mm | 25mm to 140mm | 25mm to 140mm | |
| Cap Diameter | 13mm, 20mm, 28mm, 30mm & 33mm with the help of change parts | 13mm, 20mm, 28mm, 30mm & 33mm with the help of change parts | 13mm, 20mm, 28mm, 30mm & 33mm with the help of change parts | |
| Power Required | 1 H.P. | 1.5 H.P. | 2 H.P. | |
| Power Voltage | 440 Volts, 3 Phase, 50 Hertz | 440 Volts, 3 Phase, 50 Hertz | 440 Volts, 3 Phase, 50 Hertz | |
| Overall Dimension | 1300mm (L) x 850mm (W) x 1680mm (H) | 1500mm (L) x 850mm (W) x 1680mm (H) | 2000mm (L) x 945mm (W) x 1680mm (H) | |
| * Power voltage can be adjusted as per customer’s domestic power voltage requirements. * Rights of technical improvements & modification reserved. * Illustrations & dimensions are shown for information purpose only. |
||||
