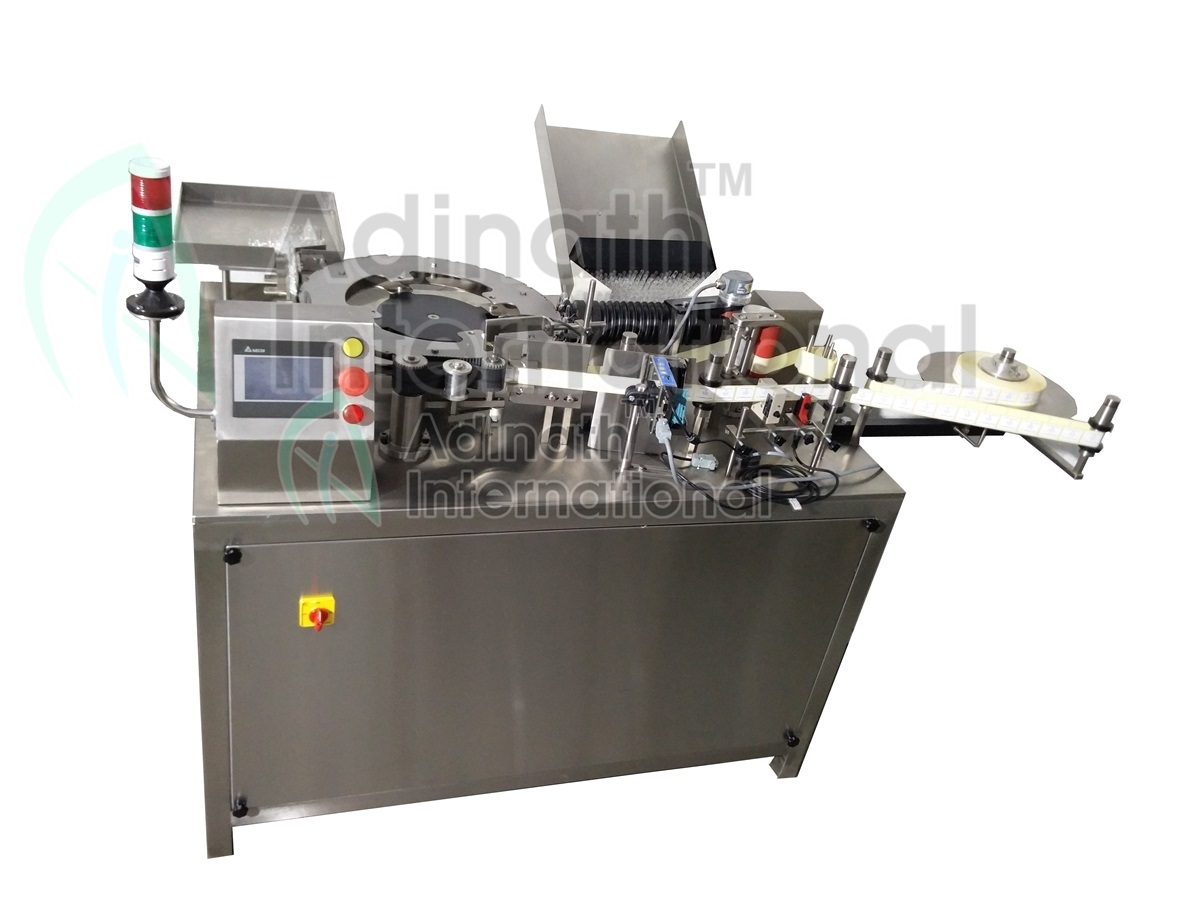

High Speed Ampoule Labeler Machine suitable for high speed sticking of self-adhesive sticker labels onto ampoules. Machine perform wrap around labeling operation on to ampoules meeting GMP requirements. Machine is compact in size having rotary mechanism with inbuilt PLC HMI onto control panel.
Interestingly machine is also suitable to labels vials up to 20ml diameter and bottles up to 25ml diameter. We are having three different models in this machine through which up to 600 per minute output can be achieved.
Ampoules are loaded onto infeed hopper of the machine from where it is delivered to the feedworm. Feedworm rotates and during its operation transfers ampoules to the Starwheel. The Starhweel is having rollers same diameter as of ampoule body diameter. Starwheel transfer ampoules to the labeling station where ampoule picks label one by one and further moves towards pressing unit. Pressing Unit equipped with rubber belt for proper placing the labels. During movement of ampoules from pressing belt ampoules get labeled.
Duly labeled ampoules get collected on Outfed Collection Tray for further operation.
| Model | AASL-300 | AASL-600 | ||
|---|---|---|---|---|
| Production Rate | Up to 300 Ampoules/Minute | Up to 600 Ampoules/Minute | ||
| Input Specification | ||||
| Ampoule Diameter | 10mm to 18mm | 10mm to 18mm | ||
| Ampoule Height | 50mm to 105mm | 50mm to 105mm | ||
| Label Size | ||||
| Label Length | 20mm to 50mm | 20mm to 50mm | ||
| Label Width | 15mm to 60mm | 15mm to 60mm | ||
| Power Specification | 1 H.P. | 2 H.P. | ||
| Electrical Characteristics | 230 Volts, Single Phase 400/750W Servo Motor with encoder |
230 Volts, Single Phase 400/750W Servo Motor with encoder |
||
| Overall Dimension | 1250mm (L) x 1100mm (W) x 1100mm (H) | 1600mm (L) x 1400mm (W) x 1100mm (H) | ||
| * Power voltage can be adjusted as per customer’s domestic power voltage requirements. * Rights of technical improvements & modification reserved. * Illustrations & dimensions are shown for information purpose only. |
||||
